RS MODEL

BP MODEL	250 VAC			300 VAC			350 VAC			400 VAC			450 VAC			500 VAC

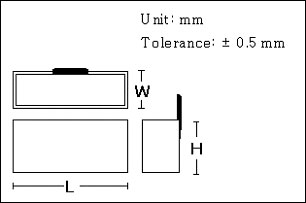

BP MODEL	L	W	H	L	W	H	L	W	H	L	W	H	L	W	H	L	W	H
1 μF	32	10	21	32	10	21	38	12.5	28	38	12.5	23	38	12.5	28	38	14.5	27
1.5 μF	32	10	21	32	10	21	38	12.5	28	32	10	21	37	15	26	38	17	30
2 μF	32	21	10	32	21	10	38	12.5	28	38	13	26	38	19	29	38	19	30
2.5 μF	32	10	21	38	12.5	28	38	14.5	27	38	17	26	39	19	29	38	19	30
3 μF	32	11	21	38	12.5	28	38	14.5	27	38	17	30	39	22	32	39	22	32
3.5 μF	38	12.5	28				37	16	27	38	18	29
4 μF	38	12.5	28	38	14.7	27	38	17	30	39	19	32	49	20	30	51	22	32
4.5 μF	38	12.5	28	38	17	30	39	19	32	39	22	32	51	22	32	51	30	40
4.7 μF							39	19	30
